Vm450F Vm750F
- Product Item：
| Application |
| Waste water drainage in factories, construction and commercial facilities Drainage system in municipal sewage treatment plants Drainage station in residential quarters Municipal projects Methane pools and field irrigation in countryside |
| Operating conditions |
| Max.Depth:5mMax.fluid temperature:40℃Liquid PH value:4-10Liquid kinematic viscosity: 7×10-7--23×10-6 m2/sMax.liquid density: 1.2×103 kg/m3Copper windingBuilt-in thermal protectorContinuous service S1Insulation Class BProtection IPX8 |
| Component |
| Pump body: Cast iron Motor housing: AISI304 SS Impeller: Cast iron Motor shaft: Carbon steel Mechanical seal: Ceramic-Graphite Cable length: 6m |

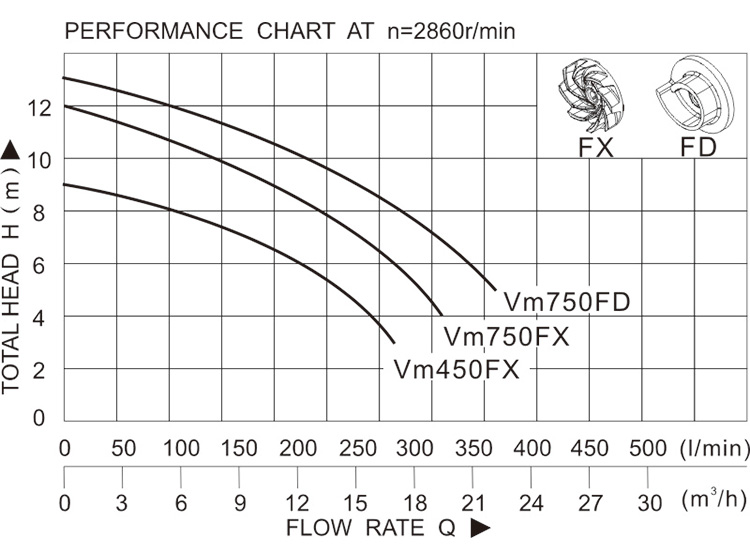

| Model | Power (kw) | Outlet Diameter (mm) | Voltage/Frequency (V/Hz) | Max.Flow (L/min) | Max.Head (m) | Max.Diameter of Particle (mm) | G.W. (kg) | Dimension (cm) |
| Vm450FX | 0.45 | 50 | 230/50 | 266 | 9 | 30 | 17 | 25.5*19.5*48.5 |
| Vm750FD | 0.75 | 50 | 230/50 | 366 | 13 | 30 | 21 | 25.5*26*53 |
| Vm750FX | 0.75 | 50 | 230/50 | 316 | 12 | 30 | 18.5 | 25.5*19.5*48.5 |
