Home > Products > Sewage Pumps
Vm1500F Vm2200F
- Product Item：
| Application |
| Max.Depth:5m Max.fluid temperature:40℃ Liquid PH value:4-10 Liquid kinematic viscosity: 7×10-7--23×10-6 m2/s Max.liquid density: 1.2×103 kg/m3 |
| Operating conditions |
| Waste water drainage in factories, construction and commercial facilitiesDrainage system in municipal sewage treatment plantsDrainage station in residential quartersMunicipal projectsMethane pools and field irrigation in countrysideCopper windingBuilt-in thermal protectorContinuous service S1Insulation Class BProtection IPX8 |
| Component |
| Pump body: Cast iron Motor housing: AISI304 SS Impeller: Cast iron Motor shaft: Carbon steel Mechanical seal: Ceramic-Graphite Cable length: 6m |

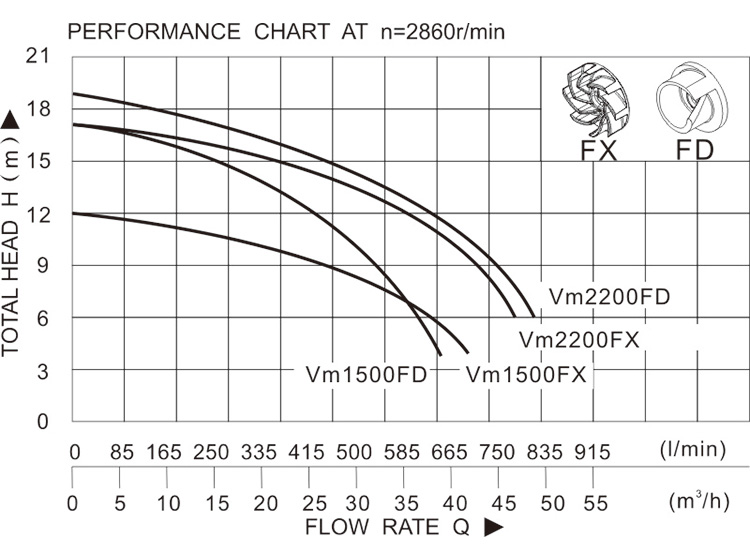

| Model | Power (kw) | Outlet Diameter (mm) | Voltage/Frequency (V/Hz) | Max.Flow (L/min) | Max.Head (m) | Max.Diameter of Particle (mm) | G.W. (kg) | Dimension (cm) |
| Vm1500FX | 1.5 | 75 | 230/50 | 700 | 12 | 25 | 32.5 | 28*27*62 |
| Vm1500FD | 1.5 | 75 | 230/50 | 666 | 17 | 25 | 34.5 | 28*27*62 |
| Vm2200FX | 2.2 | 75 | 230/50 | 800 | 17 | 30 | 37 | 28*27*62 |
| Vm2200FD | 2.2 | 75 | 230/50 | 816 | 19 | 30 | 37.5 | 28*27*62 |
PREVIOUS：Vm450F Vm750F
NEXT：V1100DF V1300DF V1800DF
