PC-30
- Product Item：
Technical parameters:
1. Start-up pressure: 1.5 bar or 2.2 bar
2. Maximum rated current: 10A
3. Permissible maximum pressure: 10 bar
4. Rated voltage: 110V or 220V
5. Frequency: 50/60HZ
6. Maximum ambient temperature: 40 C
7. Maximum Medium Temperature: 60 C
8. Protection Level: IP65
Description:
1. Automatic control of pump operation and stopping
2. Stop pumping automatically when water shortage occurs
3. Calls start automatically after power failure
4. Compulsory commencement
5. Thread Interface: G 1"External Thread
Options:
1. Optional models and functions
A: PC-30M: Water shortage self-start, the time interval of self-start is 8 seconds, 30 seconds, 1 minute, 10 minutes, 30 minutes, 1 hour, 2 hours....
2. colors
3. Fast Joint G1"
4. Power cord length:

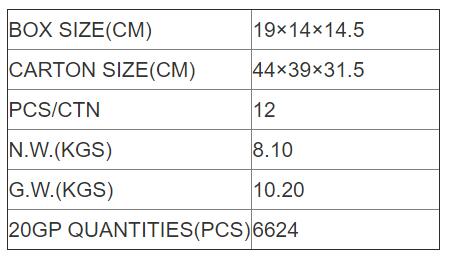

Packaging information:
