SQB

Product Item：
Order online：

Solar vortex pump

Warranty

Water pump & Controller: 3 years

Solar panels are optional.

Product Description

Components List:

1. MPPT Controller

2. Water level sensor or float switch: 10m cable (longer cable is available)

3. Cable for solar panel: 6m (longer cable is available)

4. Cable Connector

5. Installation Manual

Construction Features:
Pump body: Cast iron
Impeller: Brass
Bear: NSK
Controller shell: die-cast aluminum

Motor: Full Oil Permanent Magnet Brushless DC Motor (without hall)
Controller: 32 bit MCU & FOC & Sine Wave Current & MPPT

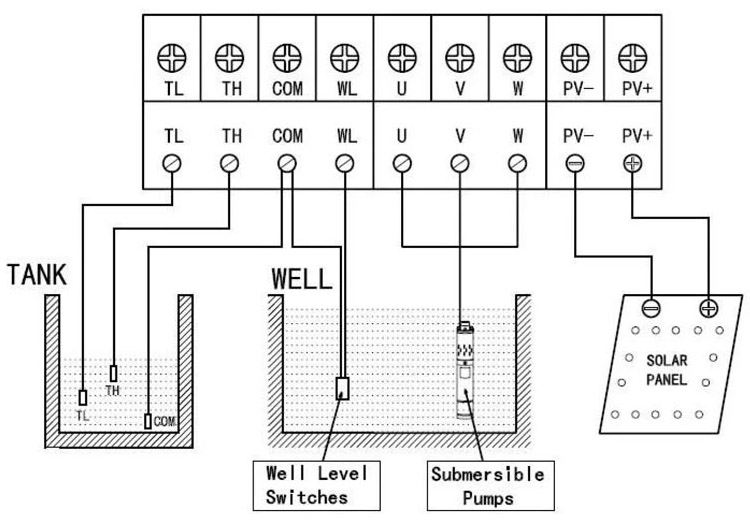

Installation

TL and TH short circuit, The pumps stop.
TL and TH open circuit, The pumps run.
WL and COM short circuit, The pumps stop.
WL and COM open circuit , The pumps run.
Note:when the WL and COM from short to Open, the pumps will delay 10min to run.
U V W Connect to Pumps.
Solar Energy Plate Connection Method.
