Intelligent Whole House Shielded Booster Pump (24V low voltage,max head 13-18m)

Product Item：
Order online：

Application

It is widely used in domestic water supply.tap water pressurization.combined water lifting.equipment supporting (air energy,solar energy,water heater,purified water,etc.),

pipeline pressurization,garden irrigation,agricultural irrigation,aquaculture,industrial and mining,hotel and high-rise building water supply,central air conditioning and central heating circulation system,etc.

Motor

Electric pump speed：(n= 10500r/min)

lnsulation：Class F

Protection：IP55

Continuous service：Sl

Output voltage：24V

Operating conditions

The temperature of pumping liquid does not exceed 80°C and the ambient temperature does not exceed 40°C.

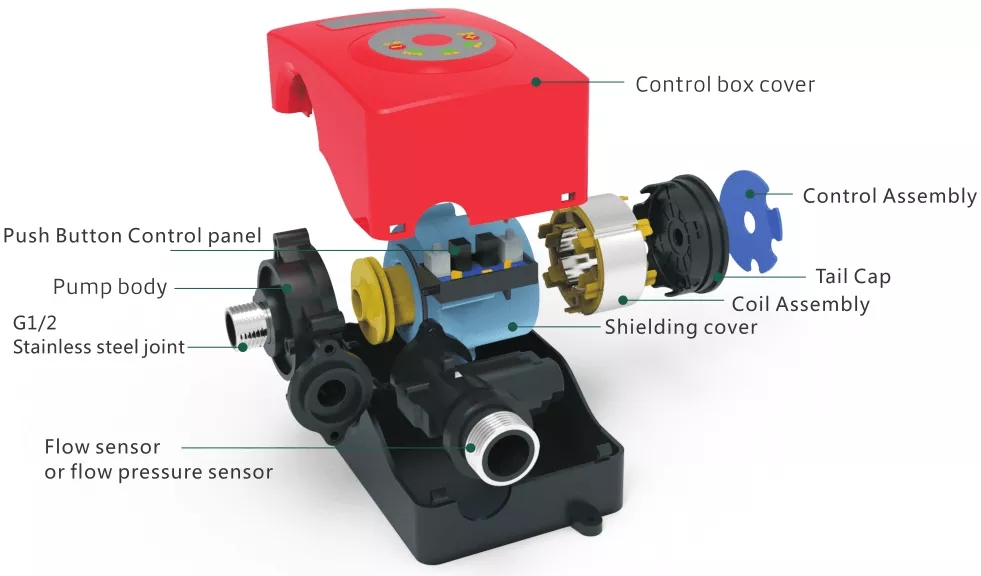

Component	Construction
Power Supply：	90-260V power adapter converts 24V output
Pump body：	Engineering plastic
Pump housing：	ABS plastics
Pump support：	Shielding sleeve
Impeller and rotor：	PPO plastics and ferrites
Rotor shaft：	99 Ceramics

PRODUCT ADVANTAGES
Stepless voltage regulation	Automatic opening of water supply
Plug-in and use	Overcurrent protection
The operation of water pump is controlled by pressure sensor and flow switch	Overvoltage protection
Water shortage protection	Light sound, about 20-30 DB
