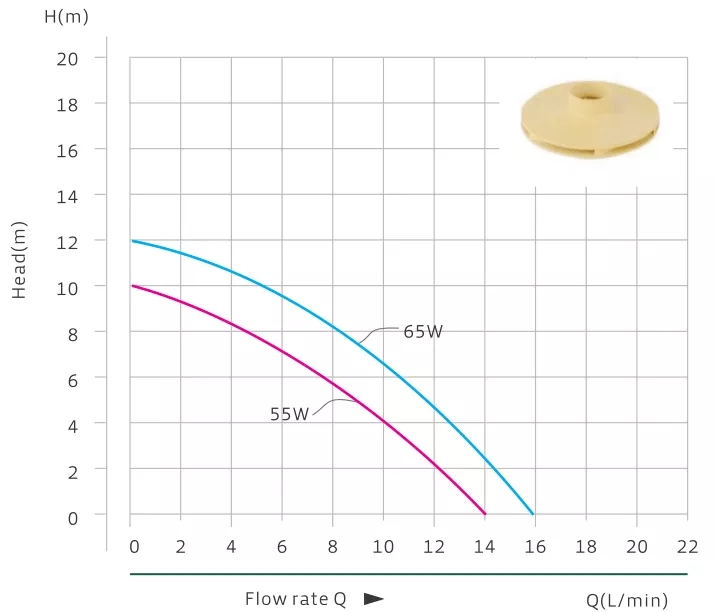

Intelligent Shielded Booster Pump (24V low voltage,max head 10-12m)

Motor

Electric pump speed：(n= 10500r/min))

lnsulation：Class F

Protection：IP54

Continuous service：Sl

Output voltage：24V

Operating conditions

The temperature of pumping liquid does not exceed 80°C and the ambient temperature does not exceed 40 °C.

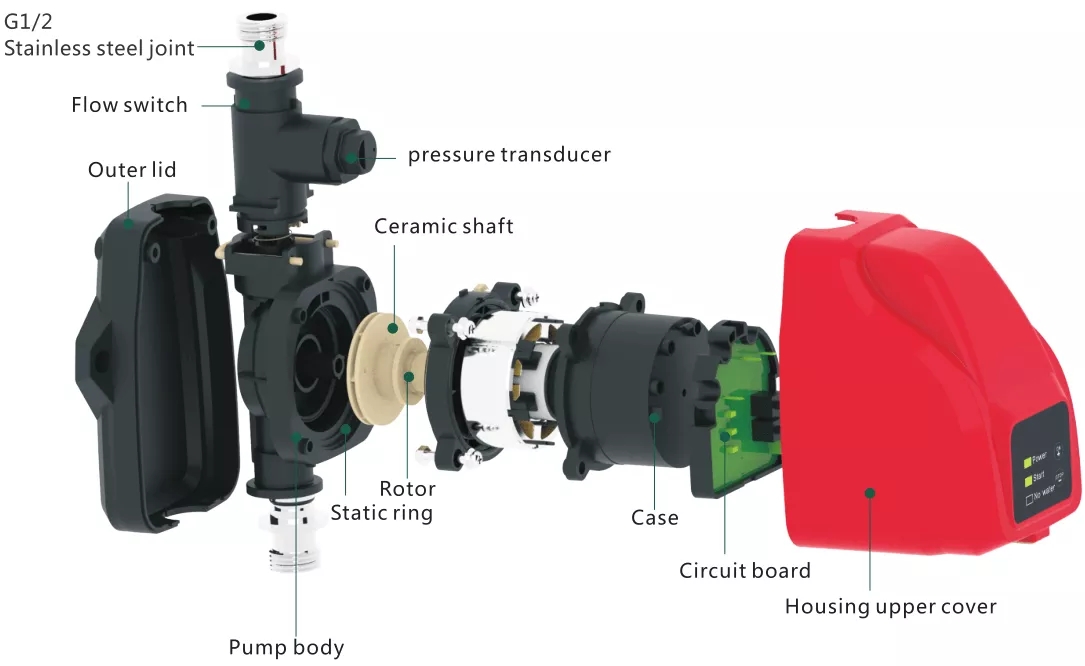

Component	Construction
Power Supply：	90-260V power adapter converts 24V output
Pump body：	Engineering plastic
Pump housing：	ABS plastics
Pump support：	Shielding sleeve
Impeller and rotor：	PPO plastics and ferrites
Rotor shaft：	99 Ceramics

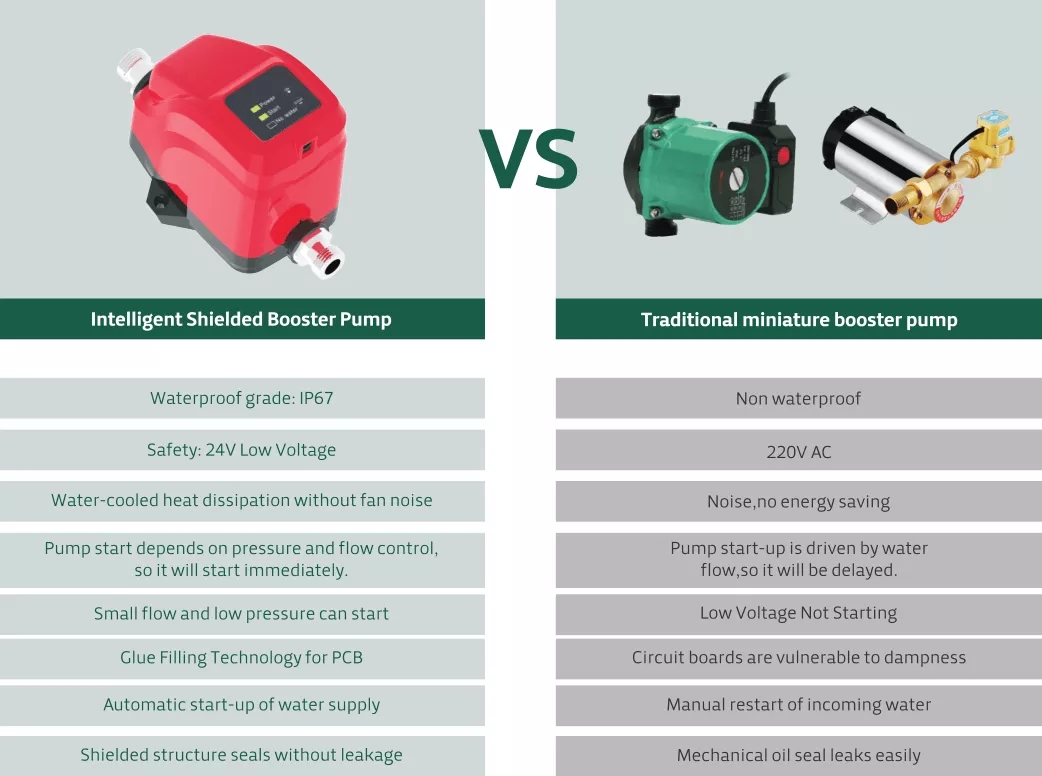

PRODUCT ADVANTAGES
Stepless voltage regulation	Automatic opening of water supply
Plug-in and use	Overcurrent protection

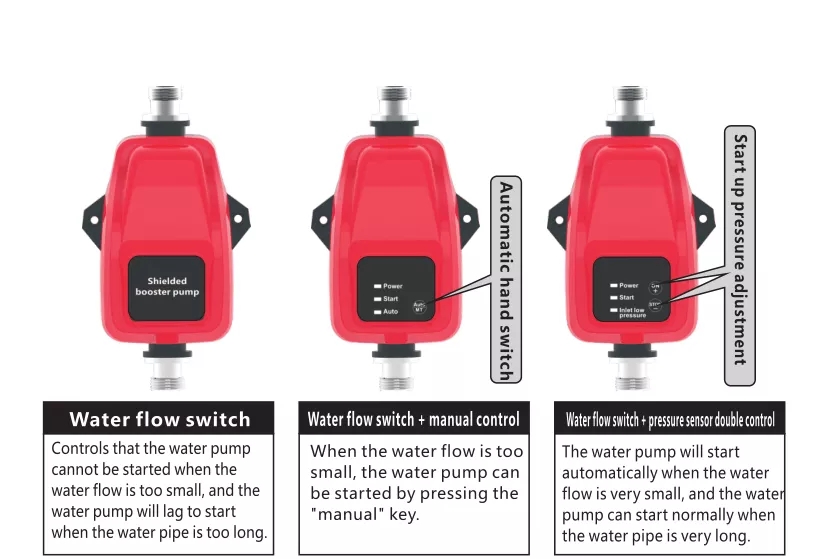

The operation of water pump is controlled by pressure sensor and flow switch	Overvoltage protection.
Water shortage protection	Light sound, about 20-30 DB
