5SSC(S.S impeller)

Product Item：
Order online：

5" stainless steel centrifugal solar submersible pump

Warranty

Water pump & Controller: 3 years

Solar panels are optional.

Product Description

Components List:

1. Solar pump with 3m cable (longer cable is available if needed)

2. MPPT controller

3. Water level sensor or float switch:10meter cable (longer cable is available)

4. Cable for solar panel: 3m (longer cable is available)

5. Cable connector

7. Installation manual

Construction Features:
Outlet: stainless steel
Impeller: stainless steel
Bearing: NSK
Pump case: stainless steel
Controller case: die-cast aluminum
Liquid temperature: max 40 °C
Quantity of sand in the water: max 40 g/m³

Motor: Full Oil Permanent Magnet Brushless DC Motor (without hall)
Controller: 32 bit MCU & FOC & Sine Wave Current & MPPT

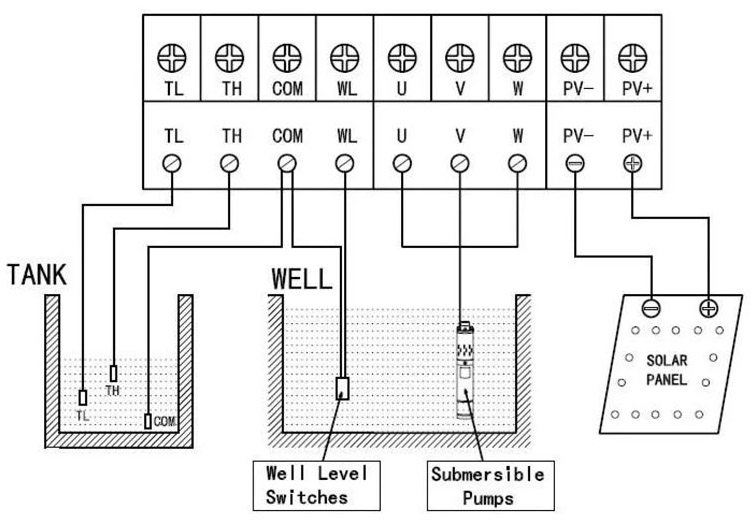

Installation

TL and TH short circuit, The pumps stop.
TL and TH open circuit, The pumps run.
WL and COM short circuit, The pumps stop.
WL and COM open circuit , The pumps run.
Note:when the WL and COM from short to Open, the pumps will delay 10min to run.
U V W Connect to Pumps.
Solar Energy Plate Connection Method.
