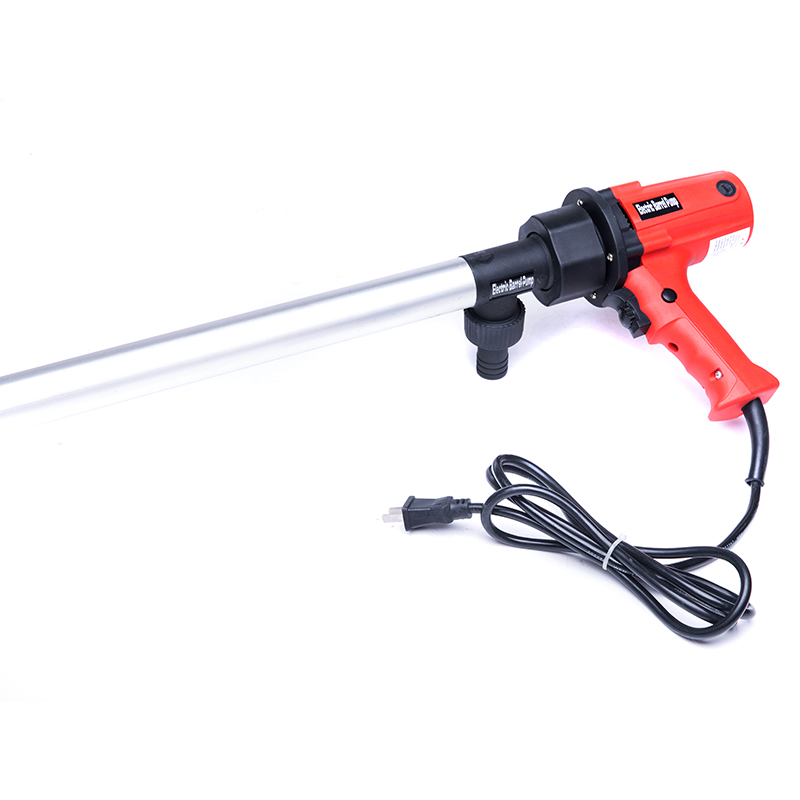

CDI-P22 Electronic Aluminum Barrel Fuel Oil Pump

Product Item：
Order online：

CDI-P22 barrel pump is used to transfer oil from drums and chooses high quality copper wire, which is more durable and reliable. It is suitable for diesel, kerosene, gasoline, engine oil, chemicals, as well as fluids with low-corrosion, low density, and few impurities. We offer 220V/12v/24v with high quality and handy shape.Also material of aluminum and stainless steel is optional.(pls choose all ss material type if for drinks or low corrosion water)

Features

a. Self Priming with 5 meter lead, makes energy saving

b. 1.5 meters cable length

c. Suitable for 200L to 220L barrels

d. Head Material usually plastic(POM), SS 304 for option

e. Compact size and light weight, easy for carry

Model Number	CDI-P22
Model	Barrel-A-DC	Barrel-A-AC	Barrel-B-AC	Barrel-C-AC
Inlet&Outlet	44mm and 25mm
Flowrate	100 lpm	30-100 lpm	30-100 lpm	50-250 lpm
Media	kerosene, diesel, gasoline(option for ss motor)
Voltage	DC 12V/24V	220V/50Hz
Power	380W	720W	800W	1600W
Speed Range	1000 rpm	300-15000rpm	300-10000rpm	300-18000rpm
Head	6 m	3-7 m	7 m	9 m
Max. Viscosity	200 cps	300 cps	500 cps	800 cps
Package	5 pcs/carton
Carton Dimension	114x29x20 cm
G.W/N.W	17 kgs/14 kgs
